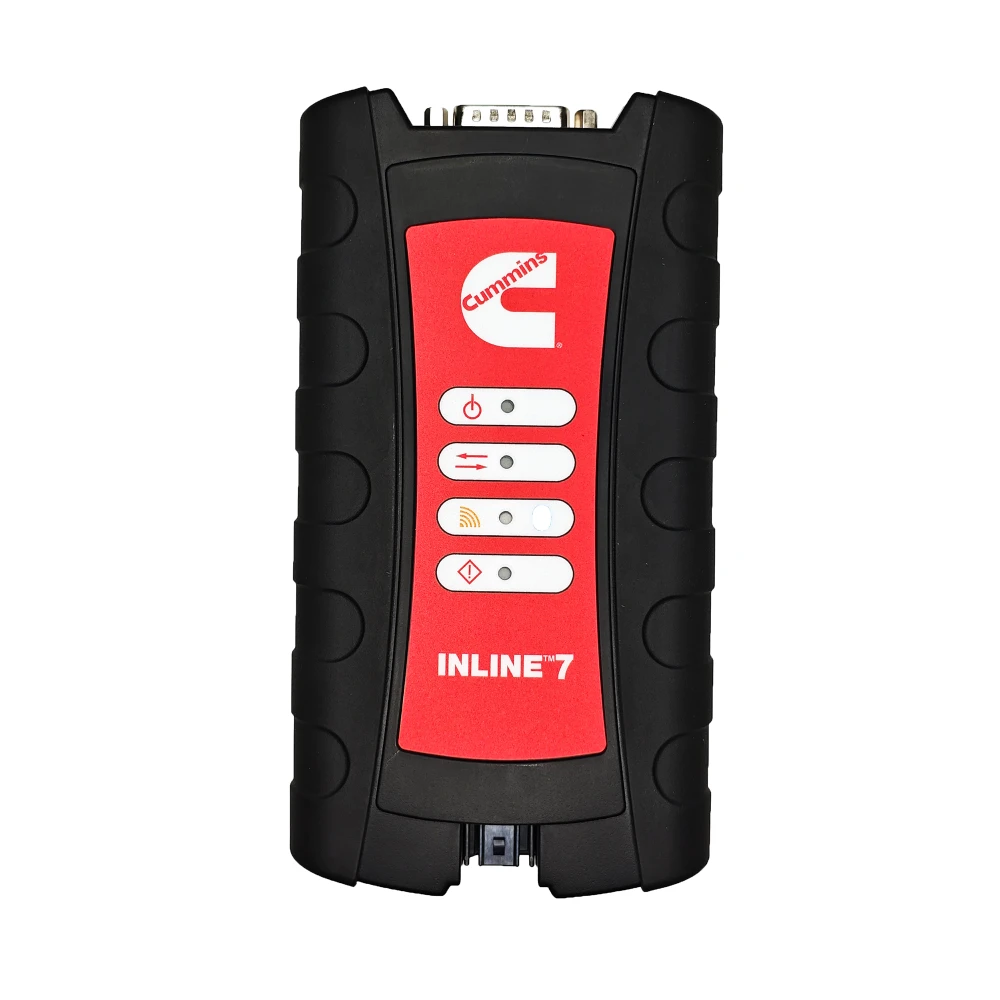

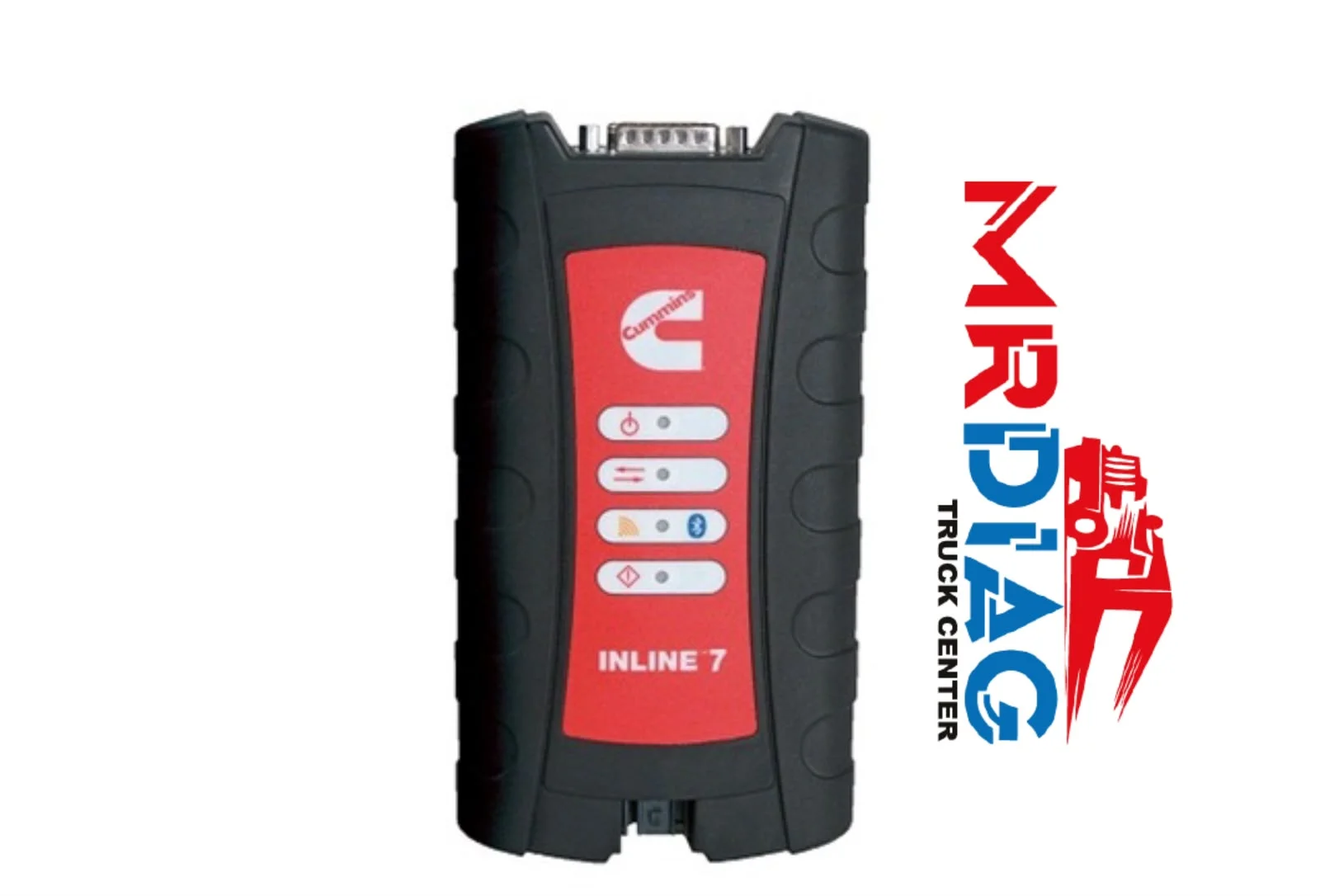

Cummins INLINE 7 Data Link Adapter – Engine Diagnostic Tool

Professional Cummins Engine Diagnostic Interface

The Cummins INLINE 7 Data Link Adapter is a powerful vehicle communication interface designed for professional diagnostics of Cummins engines and heavy-duty vehicles.

This advanced diagnostic adapter allows technicians to connect a computer or diagnostic laptop directly to the engine control module (ECM) to perform troubleshooting, parameter configuration, and real-time engine monitoring.

The INLINE 7 adapter integrates seamlessly with Cummins INSITE diagnostic software, giving technicians dealer-level access to engine data, calibration functions, and advanced diagnostic capabilities.

Advanced Engine Diagnostics

The Cummins INLINE 7 diagnostic tool enables technicians to quickly detect engine issues and optimize vehicle performance.

Main diagnostic capabilities include:

• Reading and clearing Diagnostic Trouble Codes (DTC)

• Viewing engine trip and performance information

• Monitoring engine parameters in real time

• Adjusting electronic engine feature settings

• Programming and reprogramming ECM parameters

• Performing calibration and configuration adjustments

The tool also allows access to devices such as RoadRelay systems, enabling data reading, feature adjustments, and calibration downloads.

Multi-Connection Technology

The INLINE 7 adapter offers flexible connectivity options for workshop and field diagnostics.

USB Connection

Reliable high-speed communication with diagnostic laptops.

Wi-Fi Connectivity

Wireless communication for improved mobility during diagnostics.

Bluetooth Communication

Allows convenient wireless connections to diagnostic devices.

These connectivity options make the adapter highly versatile for modern truck workshops.

Compatible Diagnostic Software

The Cummins INLINE 7 works with a wide range of OEM and third-party diagnostic software tools used in the trucking industry.

Supported programs include:

• Cummins INSITE

• Cummins PowerSpec

• Detroit Diesel Diagnostic Link

• CAT Electronic Technician

• Navistar ServiceMaxx

• Volvo Premium Tech Tool

• Allison DOC

• Eaton ServiceRanger

• Bendix ACom

• WABCO Toolbox

• Freightliner ServiceLink

This broad compatibility makes the adapter suitable for mixed fleets and multi-brand repair workshops.

Supported Communication Protocols

The INLINE 7 adapter supports multiple heavy-vehicle communication standards including:

• J1708

• J1587

• J1939

• ISO 15765

• ISO 9141 (K and L line)

It is fully compliant with the TMC RP1210 standard, ensuring compatibility with most professional diagnostic software.

The adapter supports CAN communication speeds of:

• 250 Kbaud

• 500 Kbaud

• Up to 1 Megabaud

Wide Engine Compatibility

The Cummins INLINE 7 diagnostic tool supports a wide range of engines including:

Cummins On-Highway Engines

• ISX15

• ISX12

• ISL9

• ISB6.7

Cummins Off-Highway Engines

• QSK19

• QSK23

• QST30

Other Supported Applications

• Marine engines

• Power generation engines

• Light-duty Cummins diesel engines

• Some Komatsu engines

This makes the adapter suitable for trucks, buses, industrial machinery, marine applications, and power generation systems.

Benefits for Workshops

Using the Cummins INLINE 7 diagnostic interface allows technicians to:

• Diagnose engine problems faster

• Access detailed ECM data

• Optimize engine performance and parameters

• Reduce downtime and repair costs

• Improve fleet maintenance efficiency

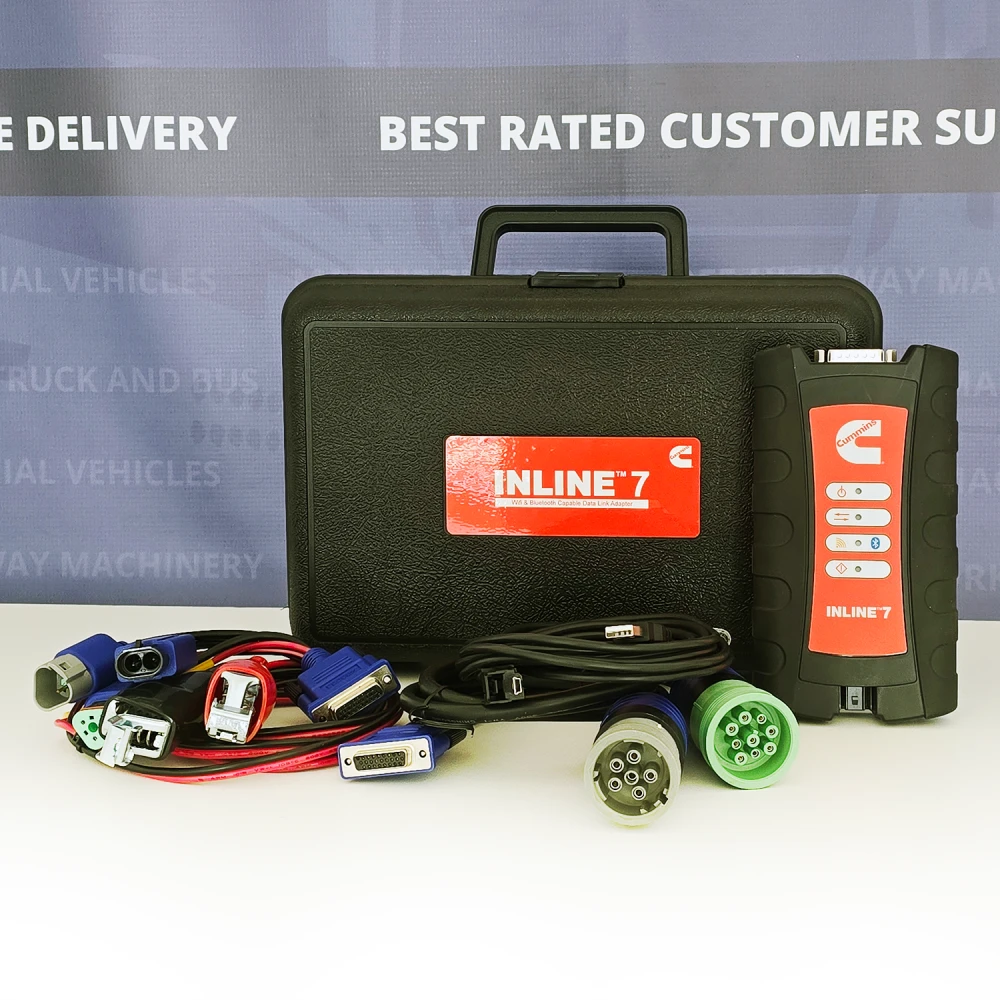

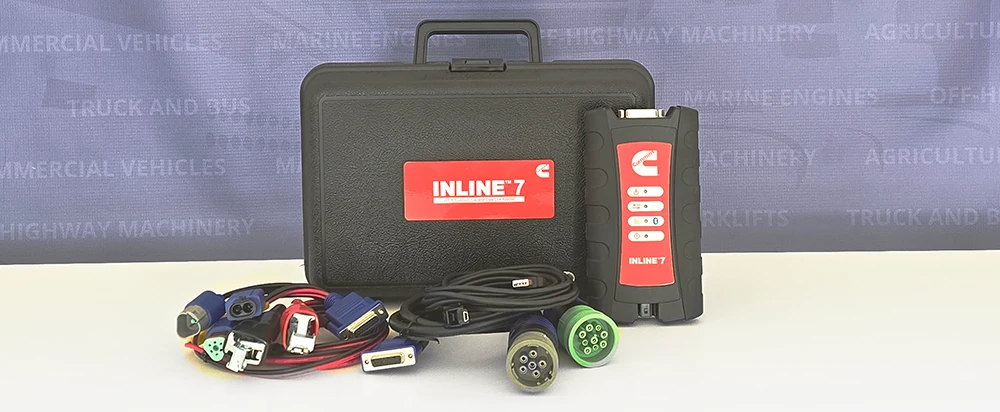

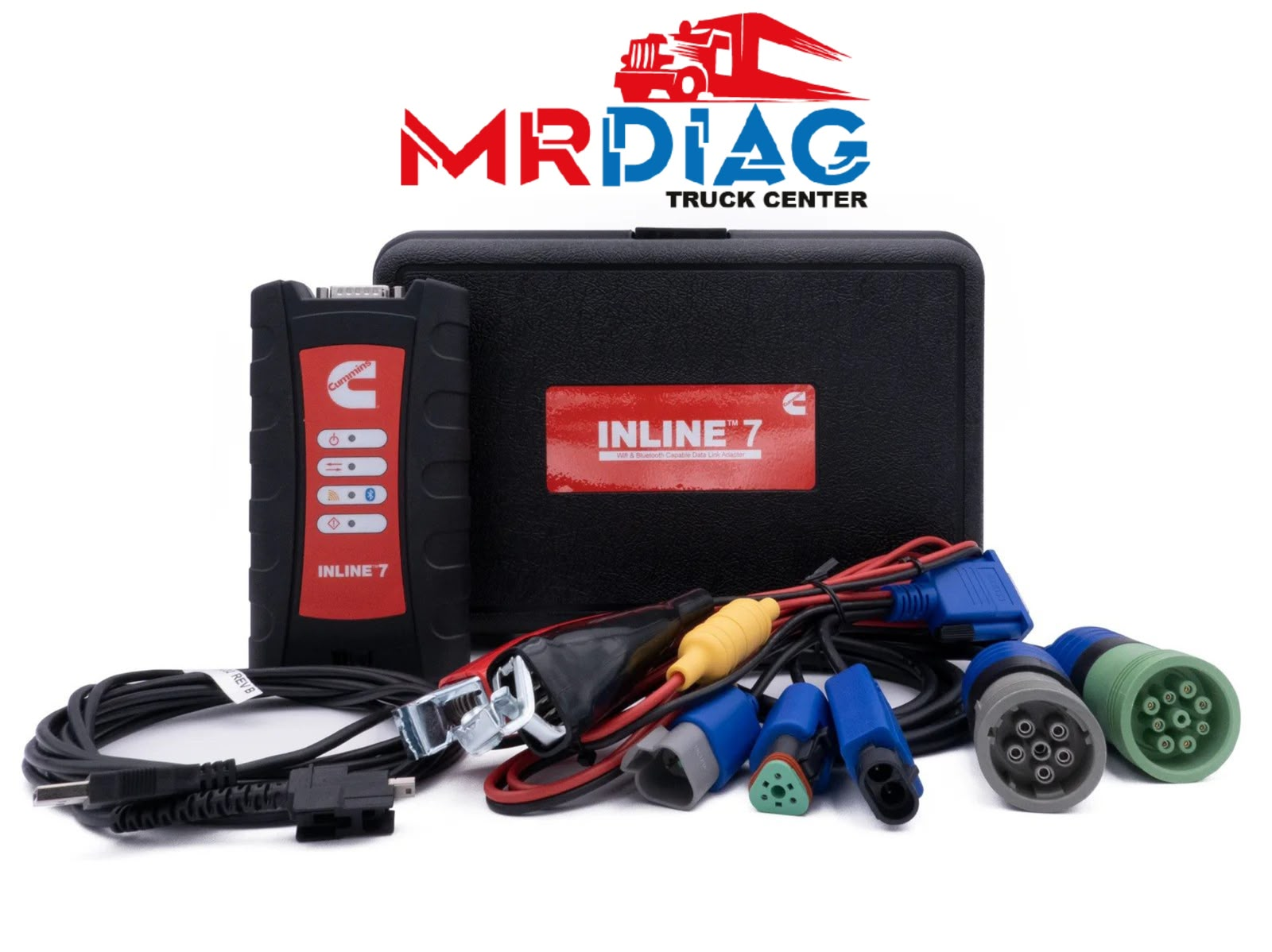

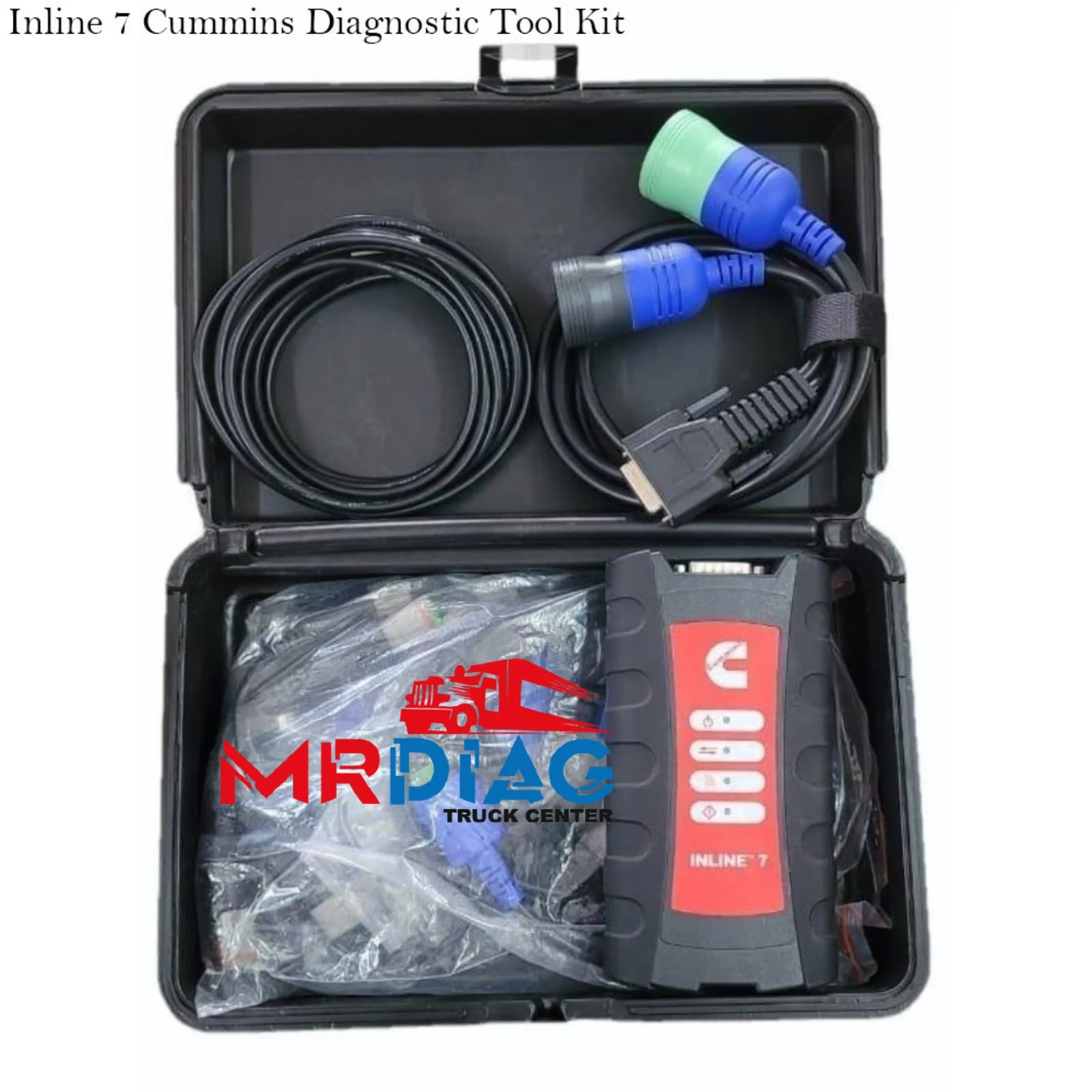

Package Contents

The Cummins INLINE 7 diagnostic kit includes:

• Cummins INLINE 7 Data Link Adapter

• USB connection cable

• 6-Pin / 9-Pin vehicle “Y” adapter

• OBDII adapter

• J1939 adapter

• Protective carrying case
