DAF / PACCAR VCI-560 MUX Truck Diagnostic Kit

The VCI-560 MUX Diagnostic Kit is an advanced diagnostic solution developed for DAF and PACCAR heavy-duty trucks. This professional tool allows technicians and workshops to diagnose, troubleshoot, calibrate, and program electronic control units (ECUs) across multiple vehicle systems.

Designed for reliability and speed, the interface supports Wi-Fi communication, allowing flexible use inside the workshop without constant USB connection.

The system includes multiple diagnostic modes including Direct Testing, Guided Diagnosis, HD-OBD diagnostics, and End-Of-Line (EOL) programming, providing full service coverage for truck maintenance and repair.

This makes the VCI-560 an ideal solution for truck repair workshops, fleet maintenance centers, and professional technicians working on DAF vehicles.

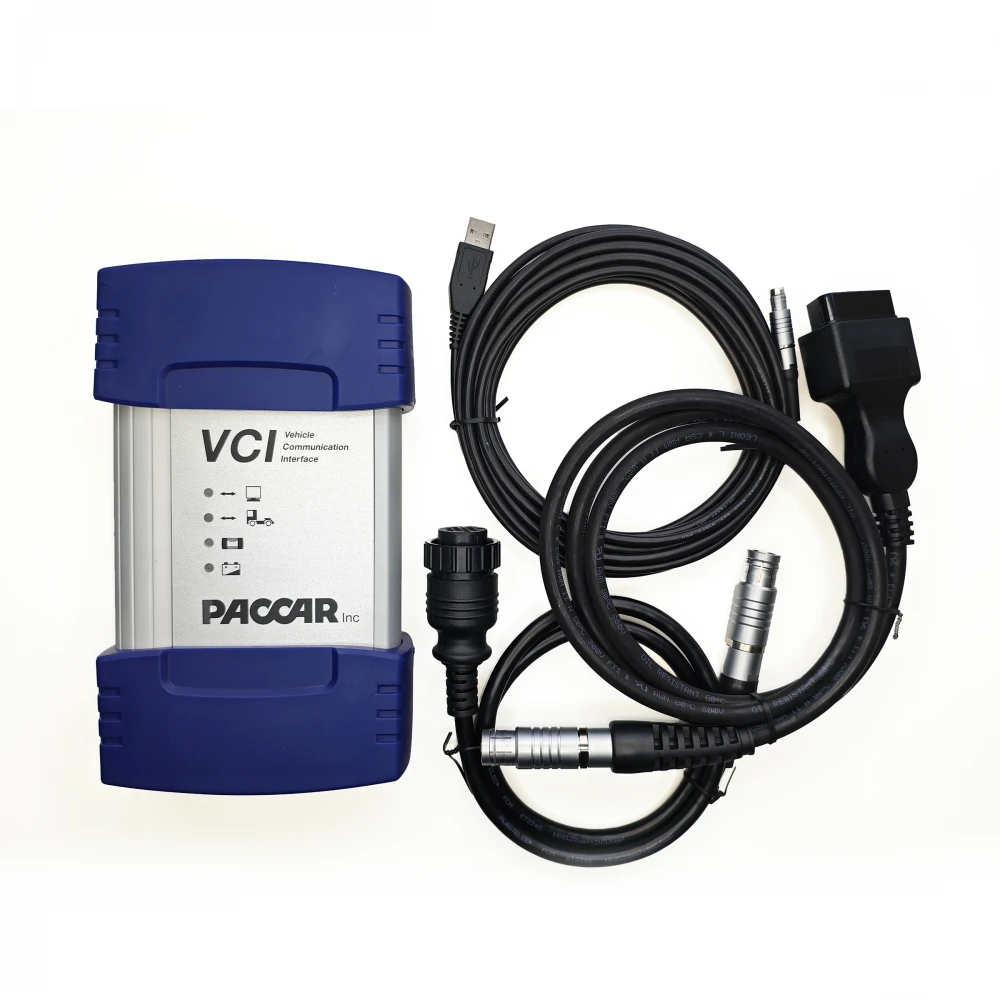

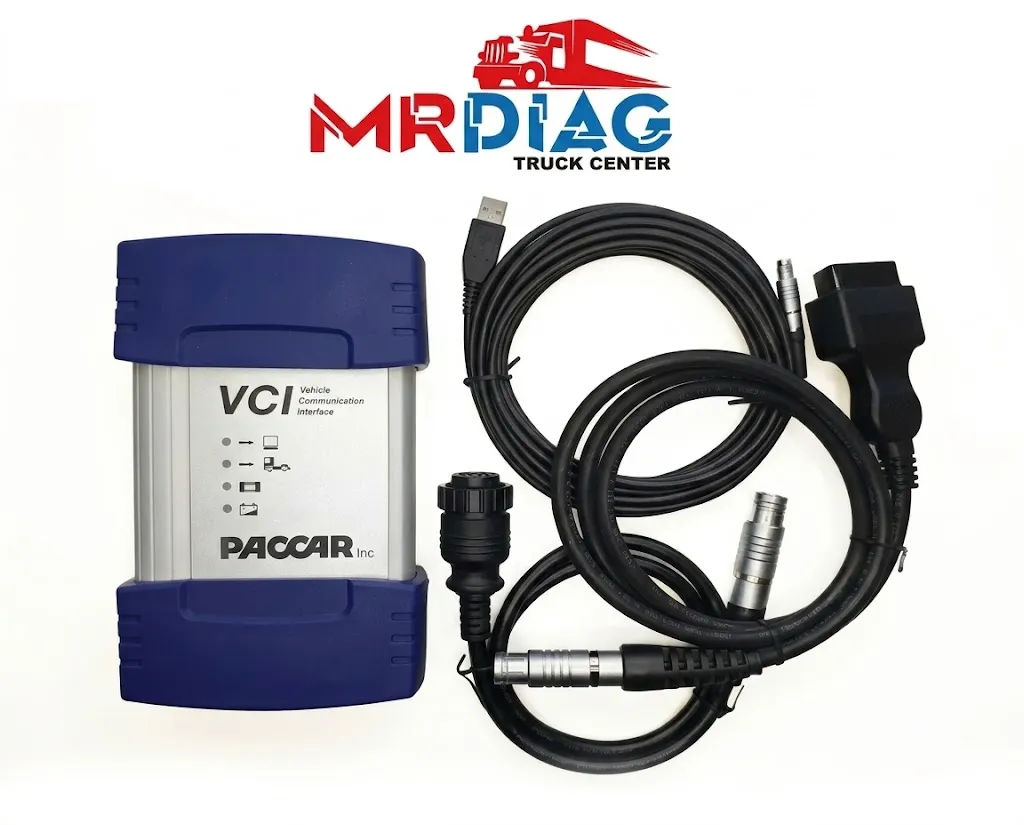

Included in the Package

• VCI-560 MUX Interface (Wi-Fi)

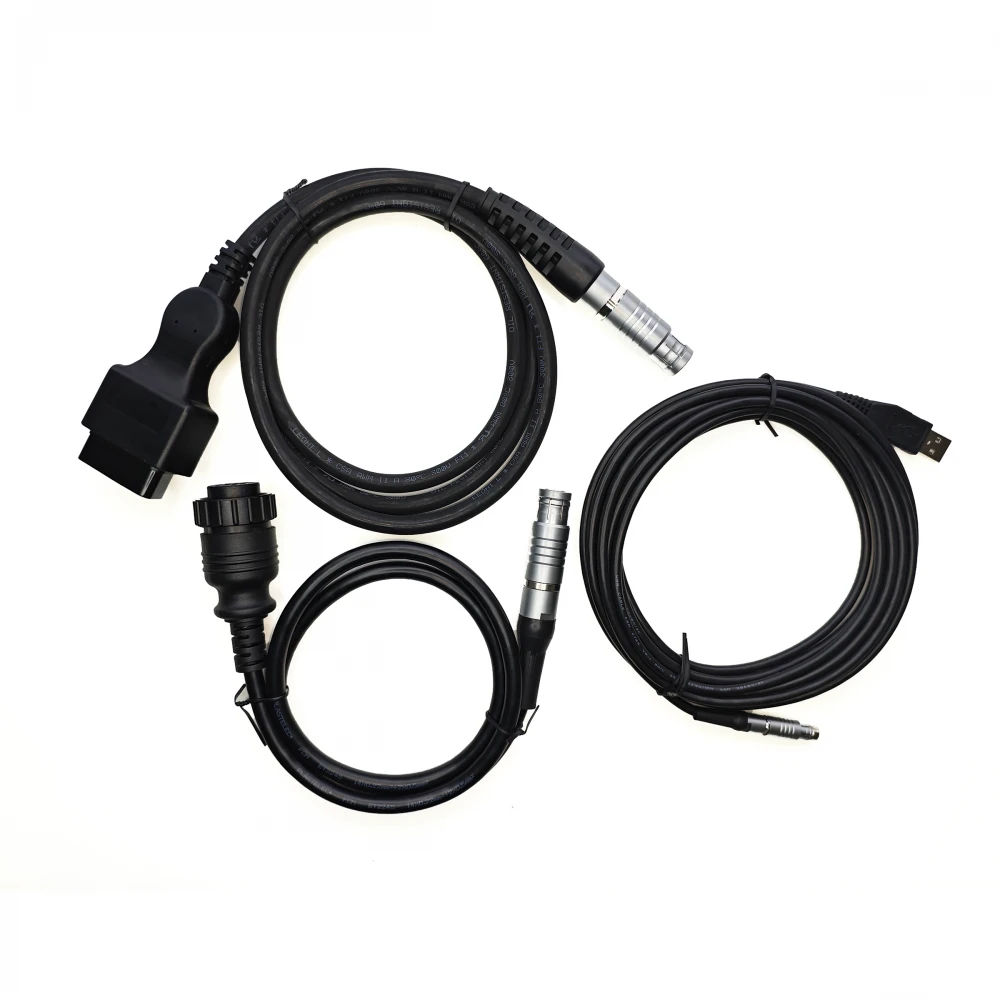

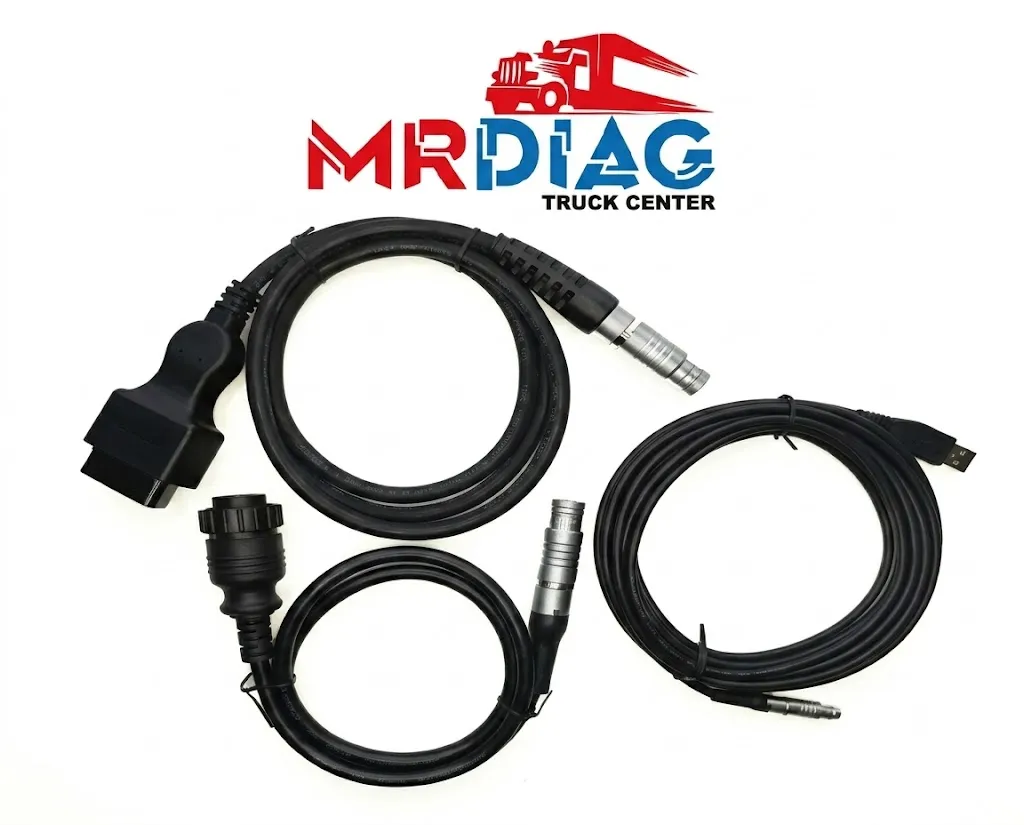

• OBD2 Cable
• 16-Pin Round Cable (for older trucks)
• USB Cable

Supported Diagnostic Functions

The diagnostic kit supports testing and troubleshooting of the following vehicle systems:

• After-treatment system
• Auxiliary systems
• Brake system
• Cabin climate control
• Communication system
• Door control system
• Engine system
• HD-OBD diagnostics
• Instrumentation system
• Power supply and ground
• Retarder system
• Safety systems
• Security system
• Steering control system
• Suspension system
• Tachograph
• Transmission system
• Vehicle control system

Diagnostic Modes

Direct Testing

Allows direct selection of individual control units and immediate testing of their components and functions.

Guided Diagnosis

Automatically generates a diagnostic test plan based on fault codes and reported vehicle symptoms, guiding the technician directly to the suspected component.

HD-OBD Mode

Provides direct testing for DAF independent control units and their components.

EOL Mode (End Of Line)

Used in production and service environments for:

• Programming
• Calibration
• Health checks
• Diagnostics of newly produced vehicles

You can easily switch between HD-OBD Mode and EOL Mode.

Advanced Software Tools

For extended programming and advanced service functions:

• DAVIE Developer Tool – Special programming and Service Level access
• DAVIE Configurator – SCR / AdBlue removal, power tuning, and language programming

Supported Languages

English
German
Dutch
Danish
Czech
French
Italian
Finnish
Hungarian
Spanish
Norwegian
Russian
Greek
Polish
Turkish
