Professional Diagnostic Interface for IVECO Vehicles

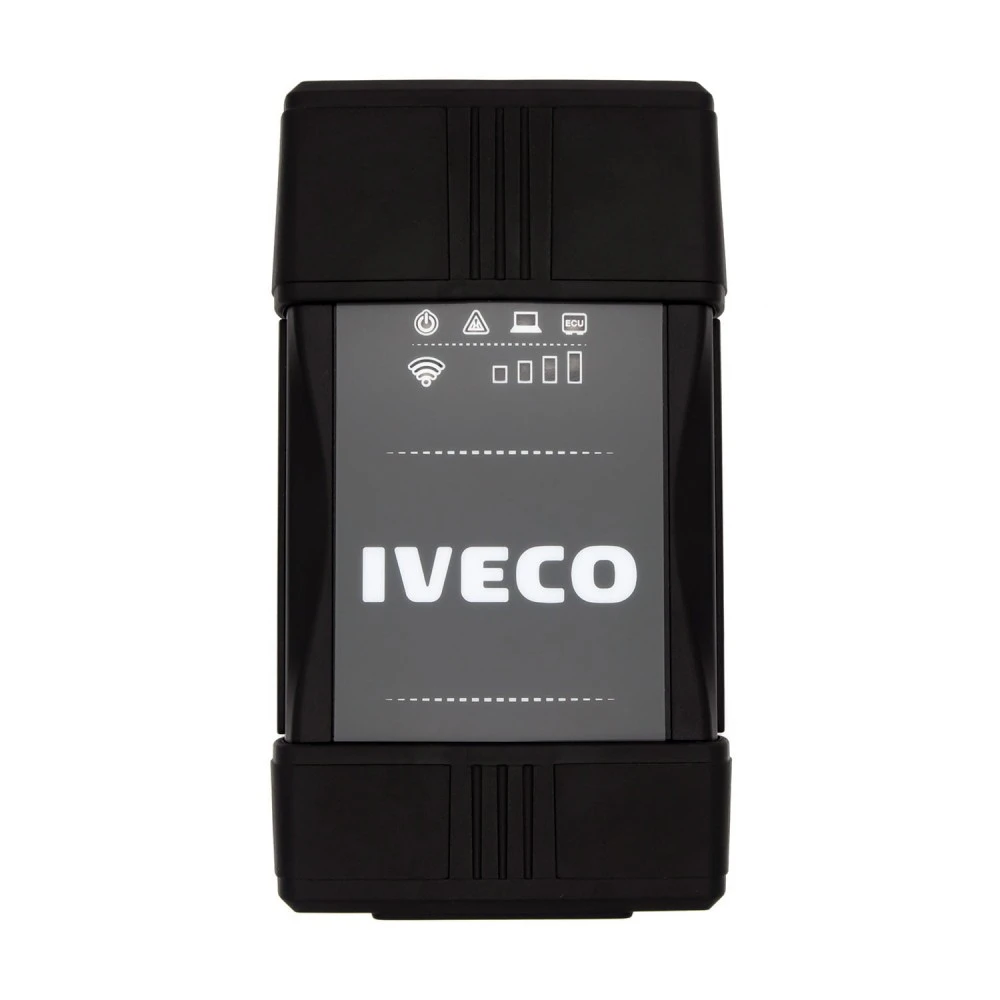

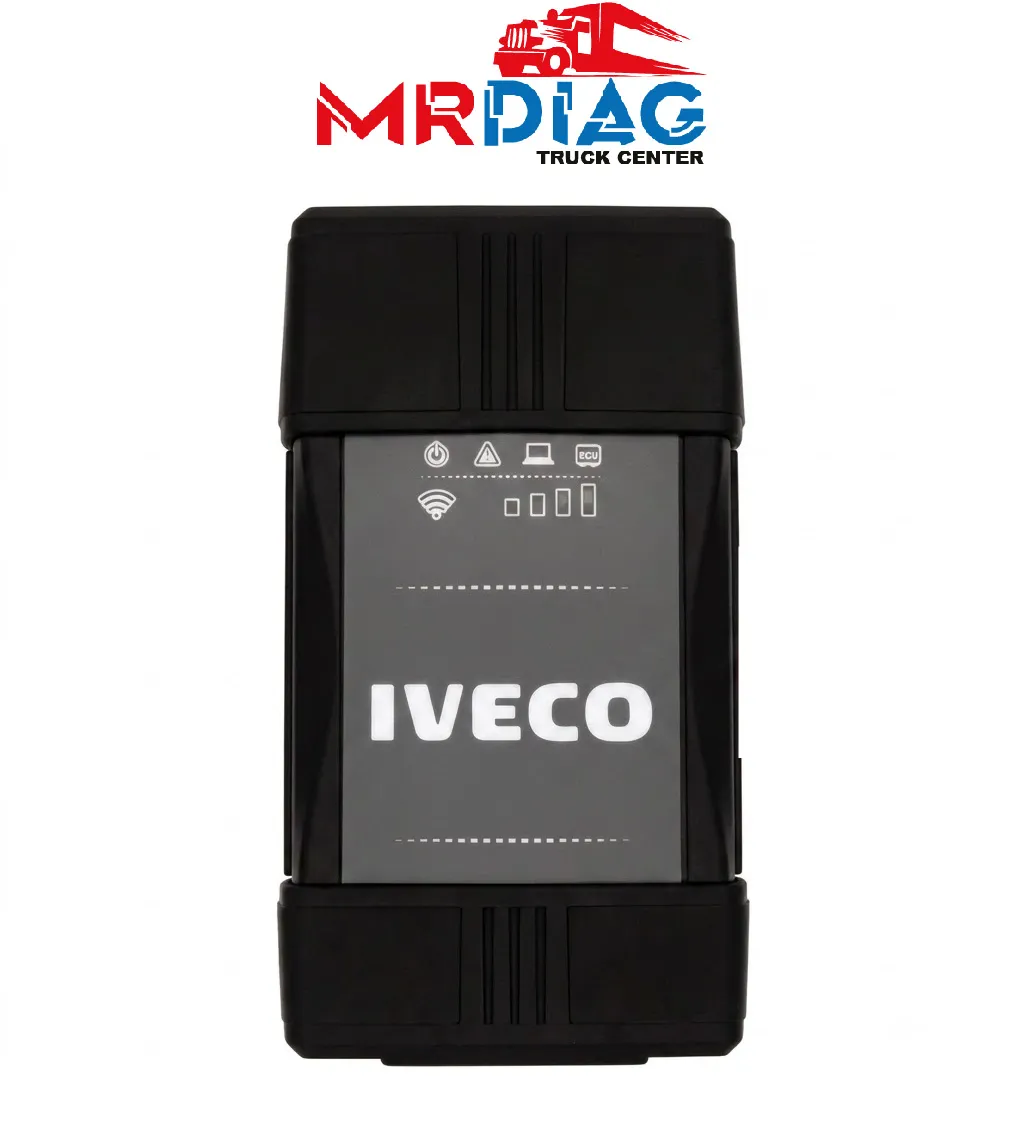

The IVECO CoreXS VCI 4 Diagnostic Scanner is an advanced diagnostic interface designed for professional maintenance and troubleshooting of IVECO vehicles.

This device works with the official IVECO UDT (Unified Diagnostic Tool) software and provides full communication with the electronic control units (ECUs) of IVECO trucks, buses, and commercial vehicles.

The CoreXS VCI 4 allows technicians to perform advanced diagnostics, monitor vehicle parameters, and configure electronic systems quickly and efficiently.

Key Diagnostic Features

The IVECO CoreXS VCI 4 provides a wide range of professional diagnostic functions.

Main capabilities include:

• Reading and clearing Diagnostic Trouble Codes (DTC)

• Monitoring vehicle parameters in real time

• Performing diagnostic tests and troubleshooting

• ECU replacement and parameter programming

• Active monitoring of vehicle systems

• Viewing and modifying ECU configuration

• Access to diagnostic procedures and technical data

• Troubleshooting using the integrated information database

This makes the CoreXS VCI 4 an essential tool for workshops specializing in IVECO vehicles.

Advanced Communication and Connectivity

The diagnostic interface supports multiple communication protocols and connectivity options, ensuring fast and stable communication with vehicle ECUs.

Supported Protocols

• CAN FD

• CAN

• K/L Line

• DoIP

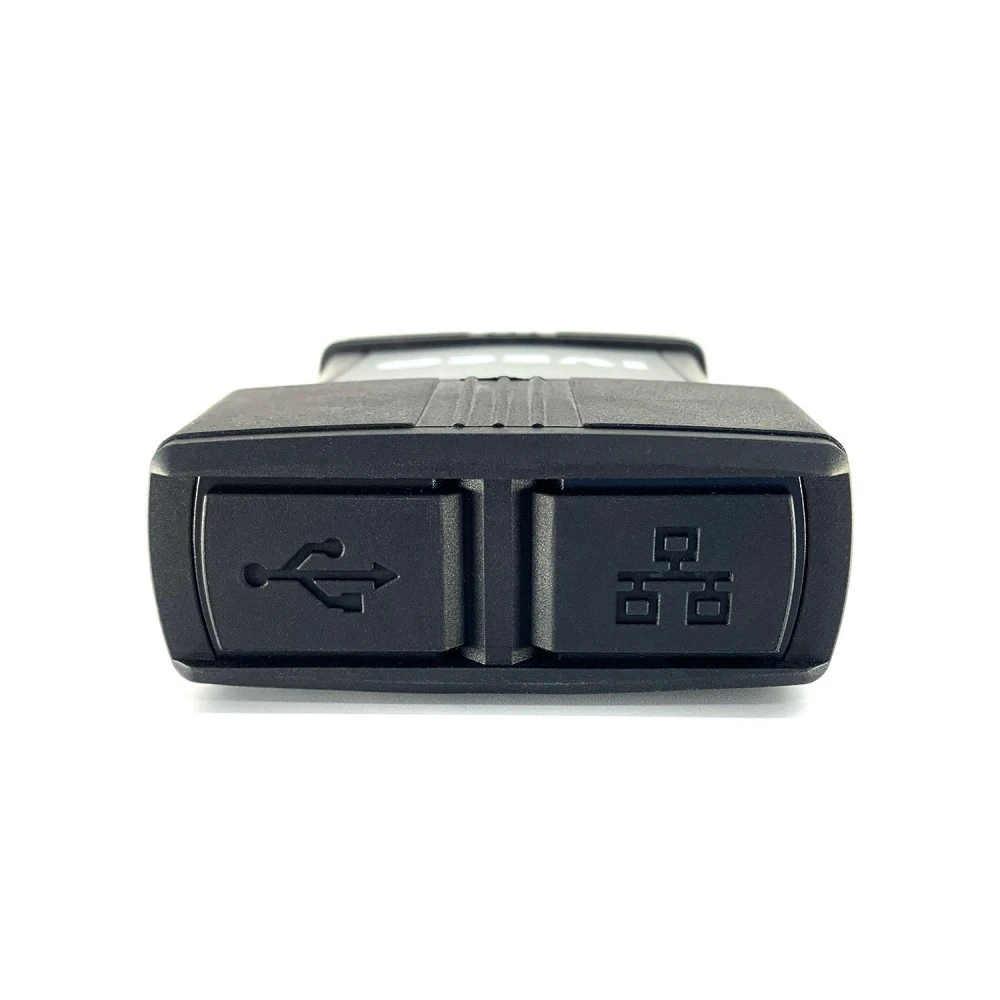

Connectivity Options

• Bluetooth 4.0

• Wi-Fi / WLAN 802.11 a/b/g/n (2.4 / 5 GHz)

• Ethernet 10/100

• USB 2.0 High Speed

• MicroSD support

These connectivity options allow flexible diagnostic operations in workshop environments.

Technical Specifications

Vehicle Coverage

The IVECO CoreXS VCI 4 supports a wide range of IVECO vehicles.

Light Range

• From IVECO Daily MY2012 onwards

Light Duty Vehicles

• From Daily MY2014 onwards

Medium Range Trucks

• From Eurocargo MY2013 onwards

Heavy Duty Trucks

• Trakker MY2013 onwards

• Stralis MY2013 onwards

Special Vehicles

• Eurofire Euro6

Bus Coverage

• Afriway

• Crossway

• EuroMidi CC MY2008

• EuroMidi CC MY2013 Euro3

• Euromidi & Minibus Euro6

• GX137 Euro6

• GX337 Electrical / Euro6 / GNV / Hybrid

• GX437 Electrical / Euro6 / GNV / Hybrid

• Magelys

• Urbanway

Additional support includes **IVECO Astra HD9 Euro6 vehicles used in heavy construction applications.

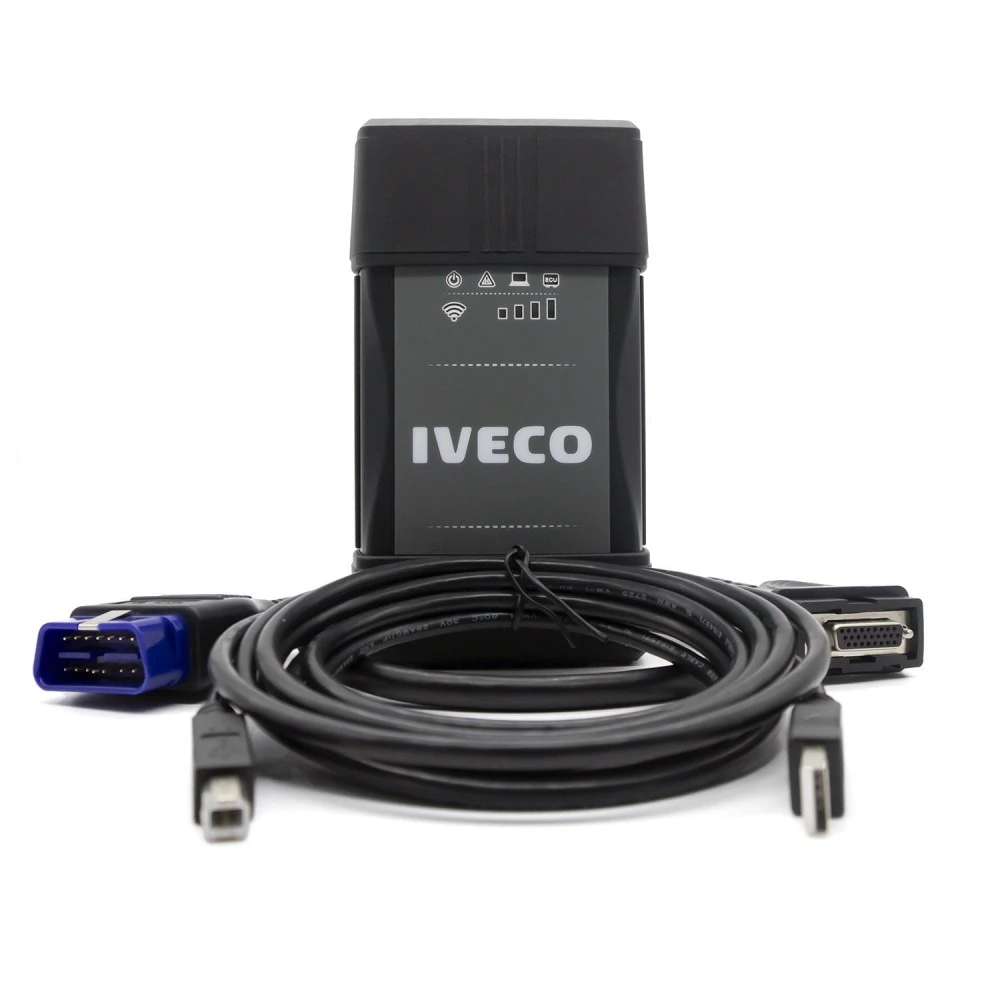

Package Contents

The package includes all essential hardware for professional diagnostics.

• IVECO CoreXS VCI 4 interface

• USB A-to-B cable (3 meters)

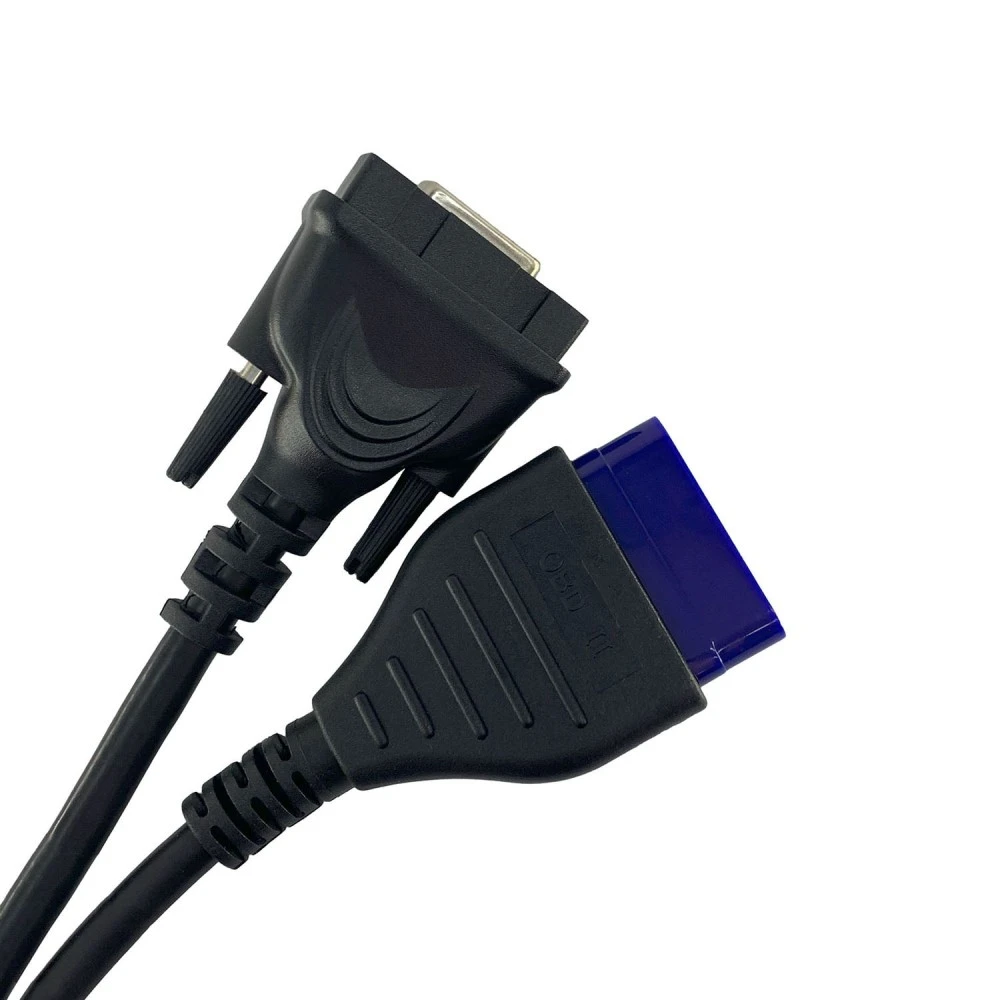

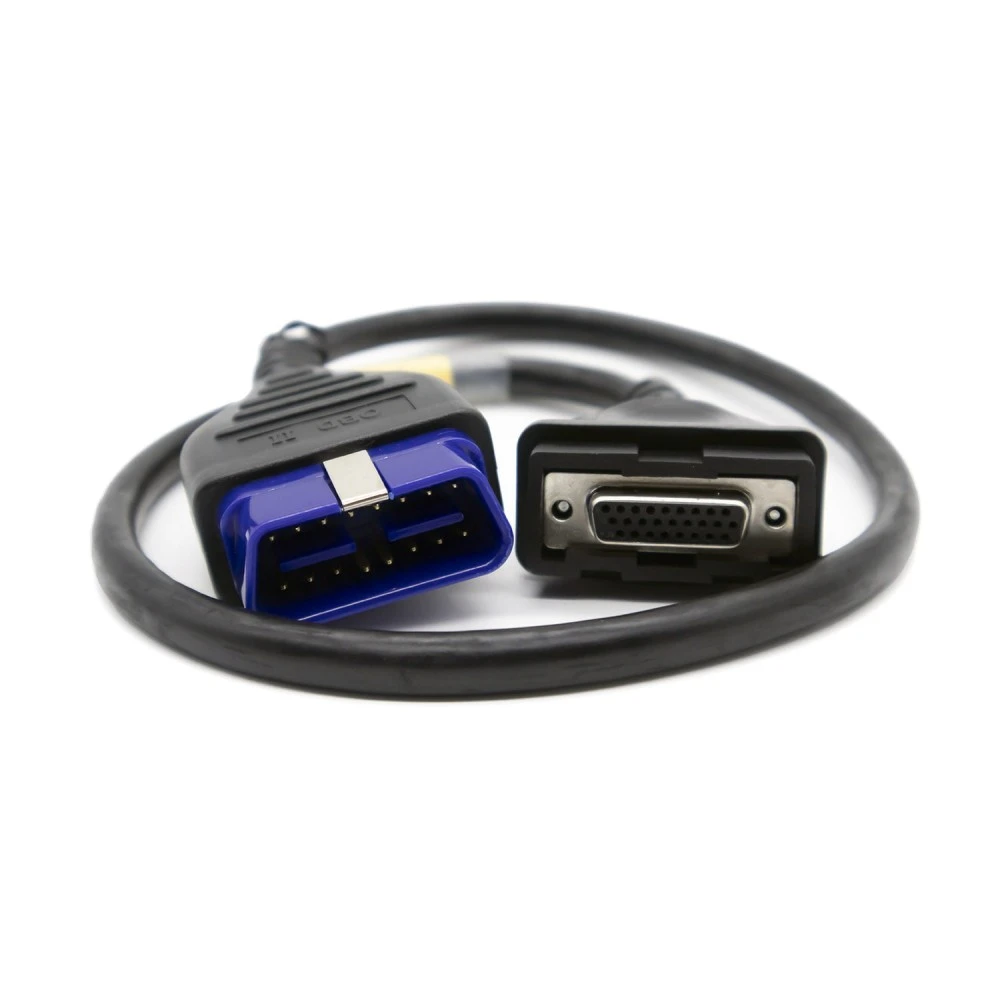

• OBD2 diagnostic cable (74 cm)

Advantages of the IVECO CoreXS VCI 4

✔ Official diagnostic interface for IVECO vehicles
✔ Compatible with IVECO UDT diagnostic software
✔ Supports modern communication protocols including CAN FD and DoIP
✔ Wireless connectivity via WiFi and Bluetooth
✔ Compact and rugged design for workshop use
✔ Supports trucks, buses, and special vehicles
