Cummins INLINE 6 Data Link Adapter – Engine Diagnostic Tool

Professional Cummins Engine Diagnostic Interface

The Cummins INLINE 6 Data Link Adapter is a professional diagnostic interface designed for communication with electronic control modules (ECM) used in Cummins diesel engines.

This advanced adapter allows technicians and maintenance professionals to perform diagnostics, troubleshooting, and ECU programming using industry-standard diagnostic software such as Cummins INSITE, PowerSpec, and Calterm.

Compact, durable, and highly reliable, the INLINE 6 adapter is widely used in truck workshops and fleet maintenance environments for diagnosing Cummins engines installed in heavy-duty vehicles.

Designed for Professional Diagnostics

The Cummins INLINE 6 interface enables communication between a diagnostic laptop and the engine’s electronic control module (ECM). It supports modern heavy-vehicle communication protocols and ensures fast and reliable ECU data transfer.

The adapter is compatible with RP1210 compliant diagnostic software, making it suitable for professional maintenance and diagnostic operations.

For best performance, the interface is designed to work with INSITE version 7.5 and later.

Key Features

• Full diagnostic communication with Cummins engine ECM

• Compatible with Cummins INSITE, PowerSpec, and Calterm software

• High-speed ECU communication

• Compact and portable design for field diagnostics

• Rugged aluminum housing for workshop environments

• Firmware upgrade capability through internal flash memory

• Designed for professional truck and diesel engine diagnostics

Supported Communication Protocols

The Cummins INLINE 6 adapter supports multiple vehicle communication protocols used in heavy-duty engines:

• SAE J1708 / J1587

• J1939 / CAN

• SAE J2534

• ISO 15765

Both CAN ports automatically detect communication speeds between 250 kbps and 500 kbps, ensuring compatibility with various vehicle systems.

Hardware Specifications

• USB full-speed connection up to 2M baud rate

• RS-232 serial connection up to 115.2k baud rate

• Powered directly from the vehicle (8V to 50V DC)

• Controlled by a 140 MHz 32-bit Freescale processor

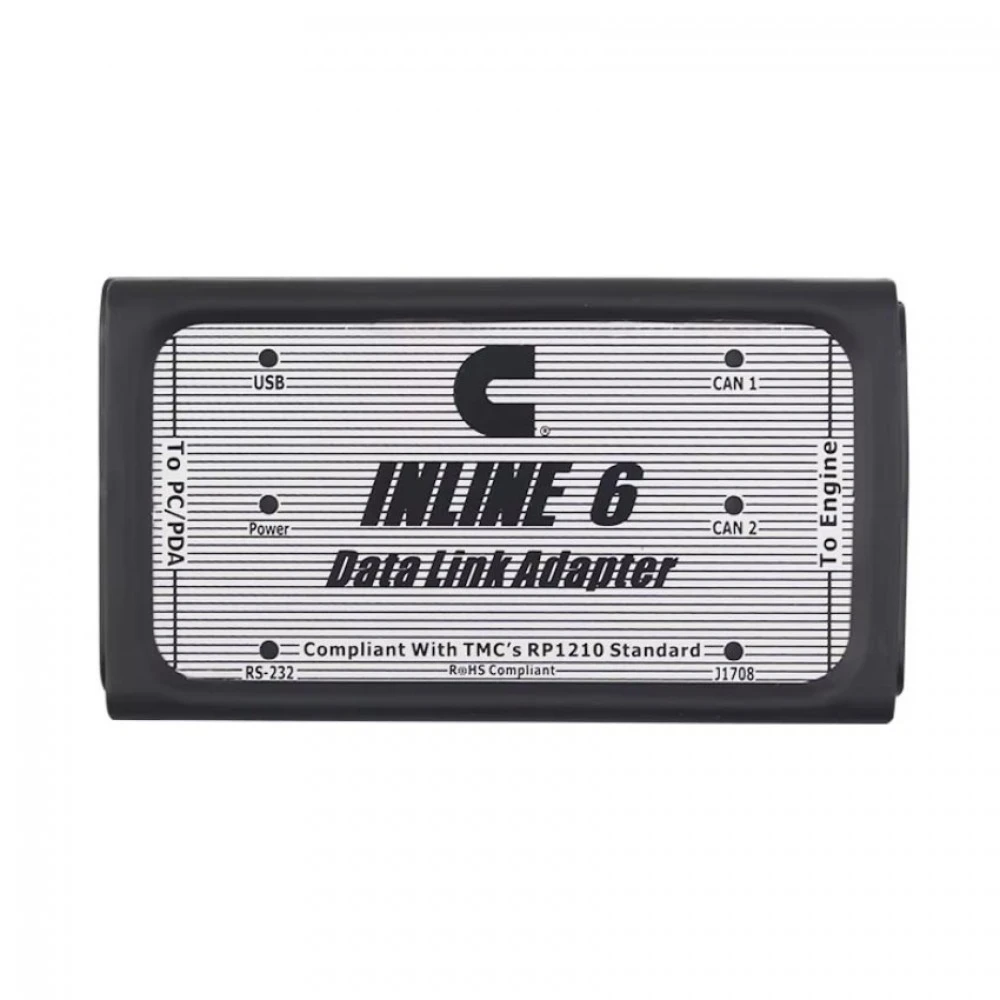

• Six LED indicators for power and communication status

• Operating temperature range -40°C to +85°C

• Fully compliant with TMC RP1210 standard

• Certified to meet European CE requirements

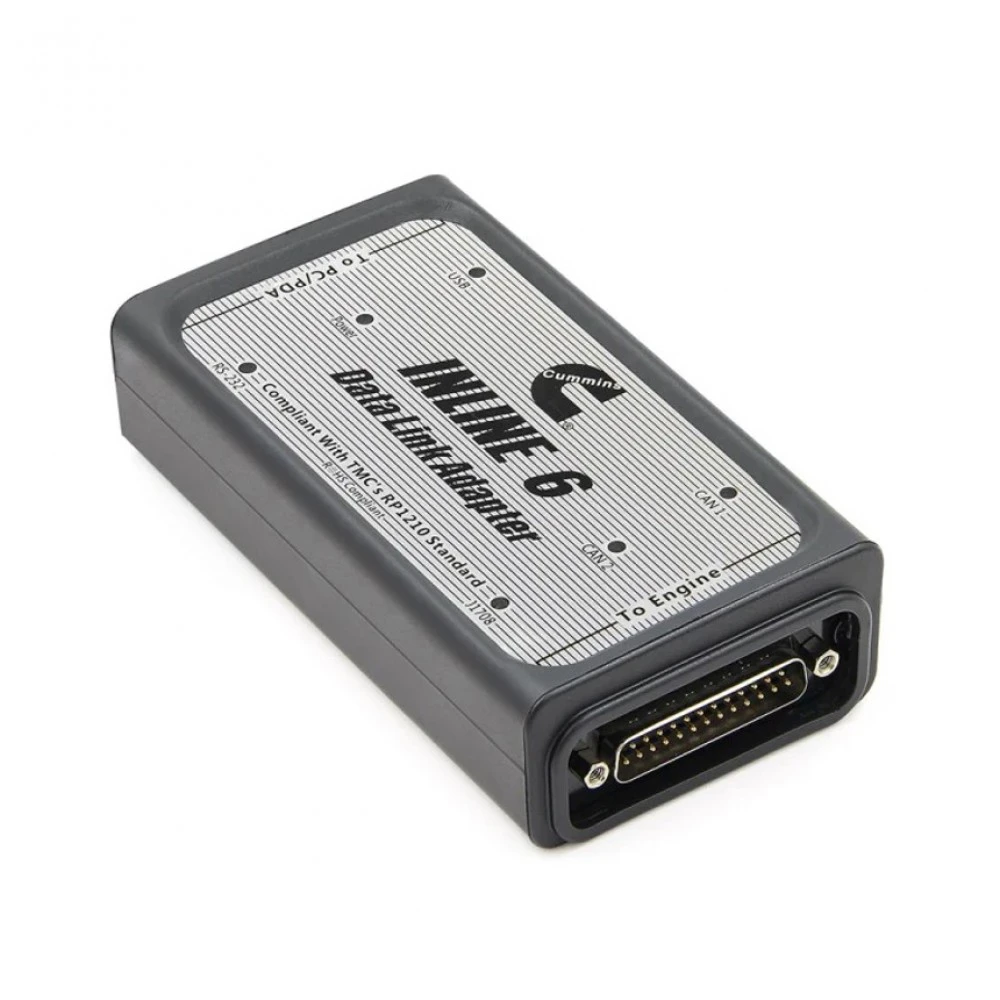

The adapter’s black powder-coated aluminum housing ensures excellent durability and reliability even in harsh workshop conditions.

Benefits for Workshops

Using the Cummins INLINE 6 diagnostic tool allows technicians to:

• Diagnose Cummins engine faults quickly

• Read and clear diagnostic trouble codes

• Monitor engine parameters in real time

• Perform ECU programming and configuration

• Improve maintenance efficiency and reduce downtime

This makes the INLINE 6 adapter an essential tool for workshops servicing Cummins-powered trucks and heavy machinery.

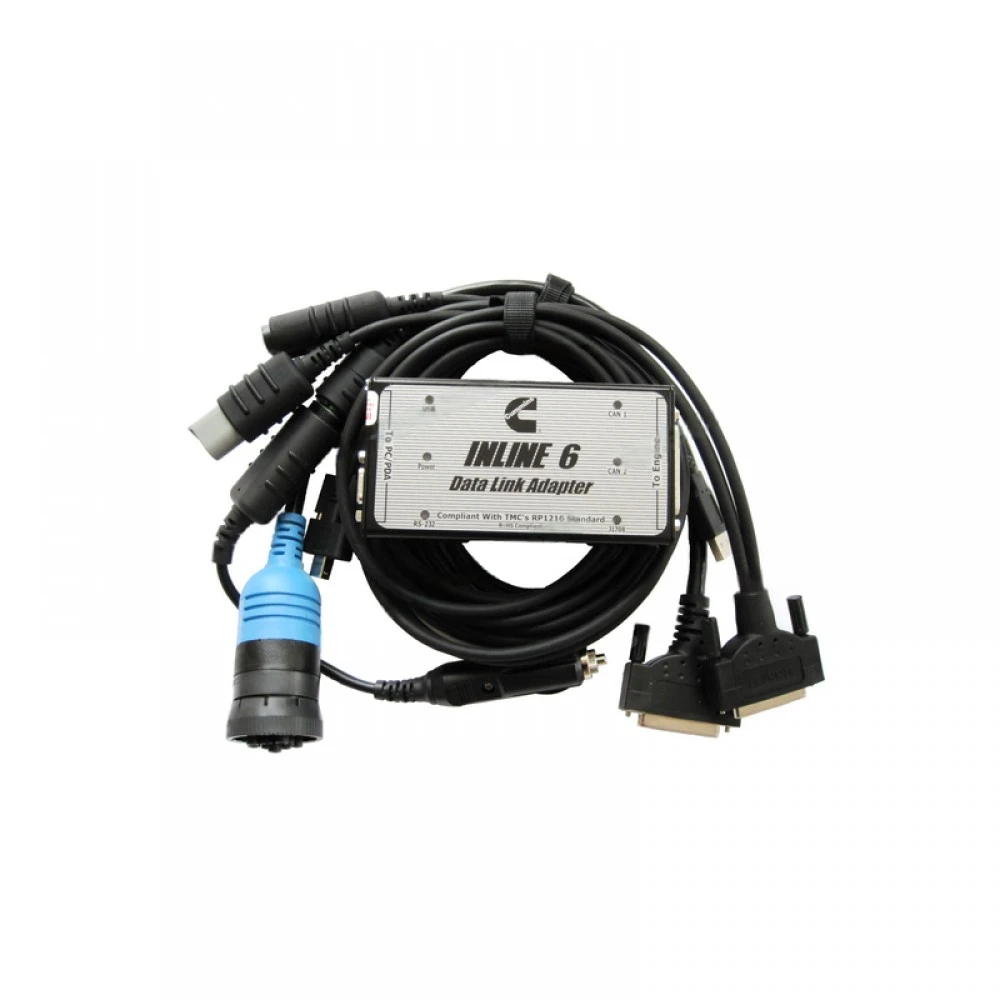

Package Contents

The standard kit includes:

• Cummins INLINE 6 Data Link Adapter

• USB connection cable

• 9-Pin Deutsch adapter

• 3-Pin / 2-Pin / 2-Pin adapter cables
