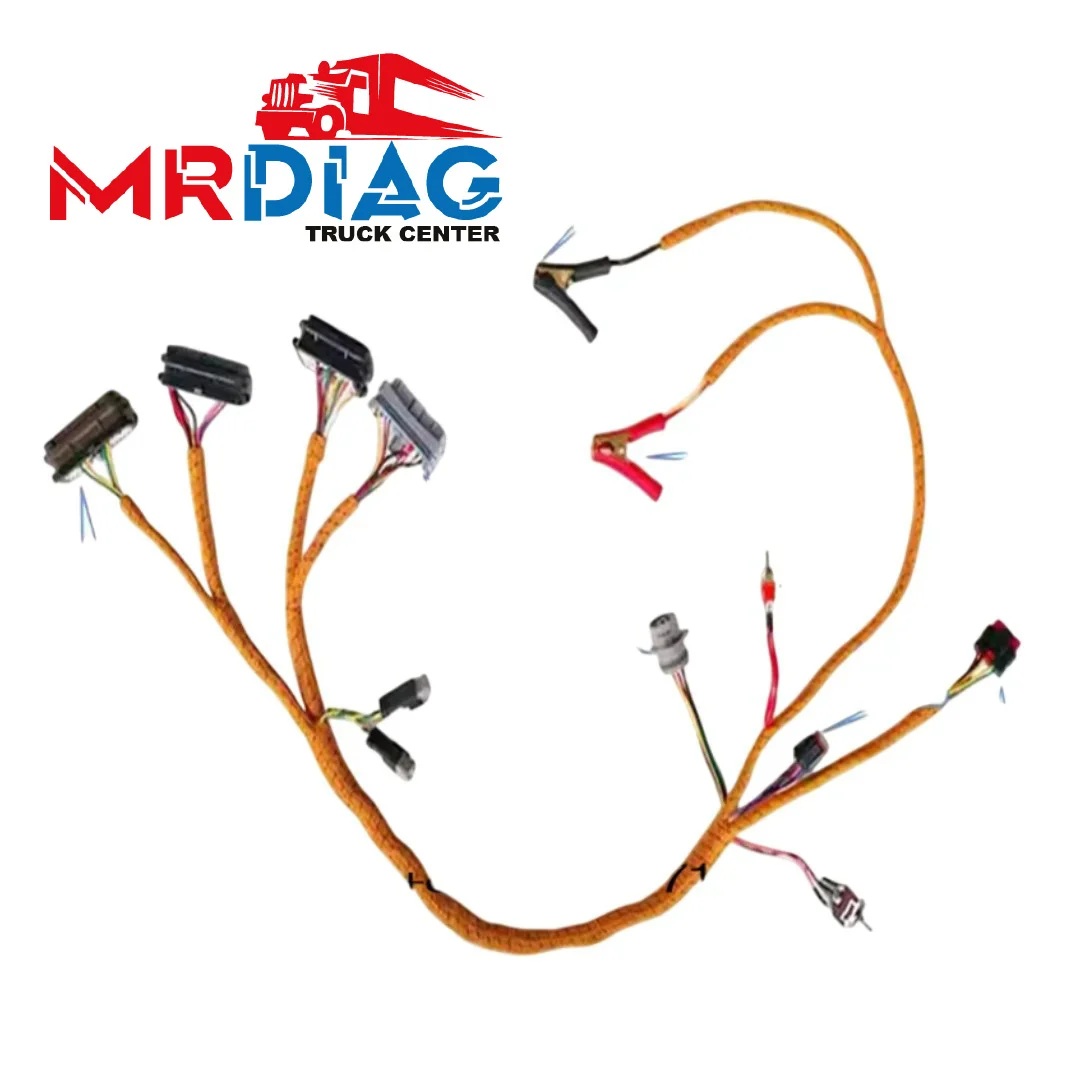

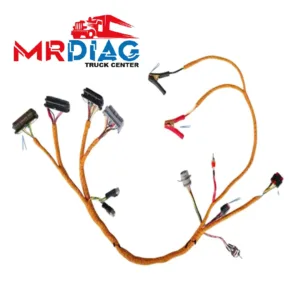

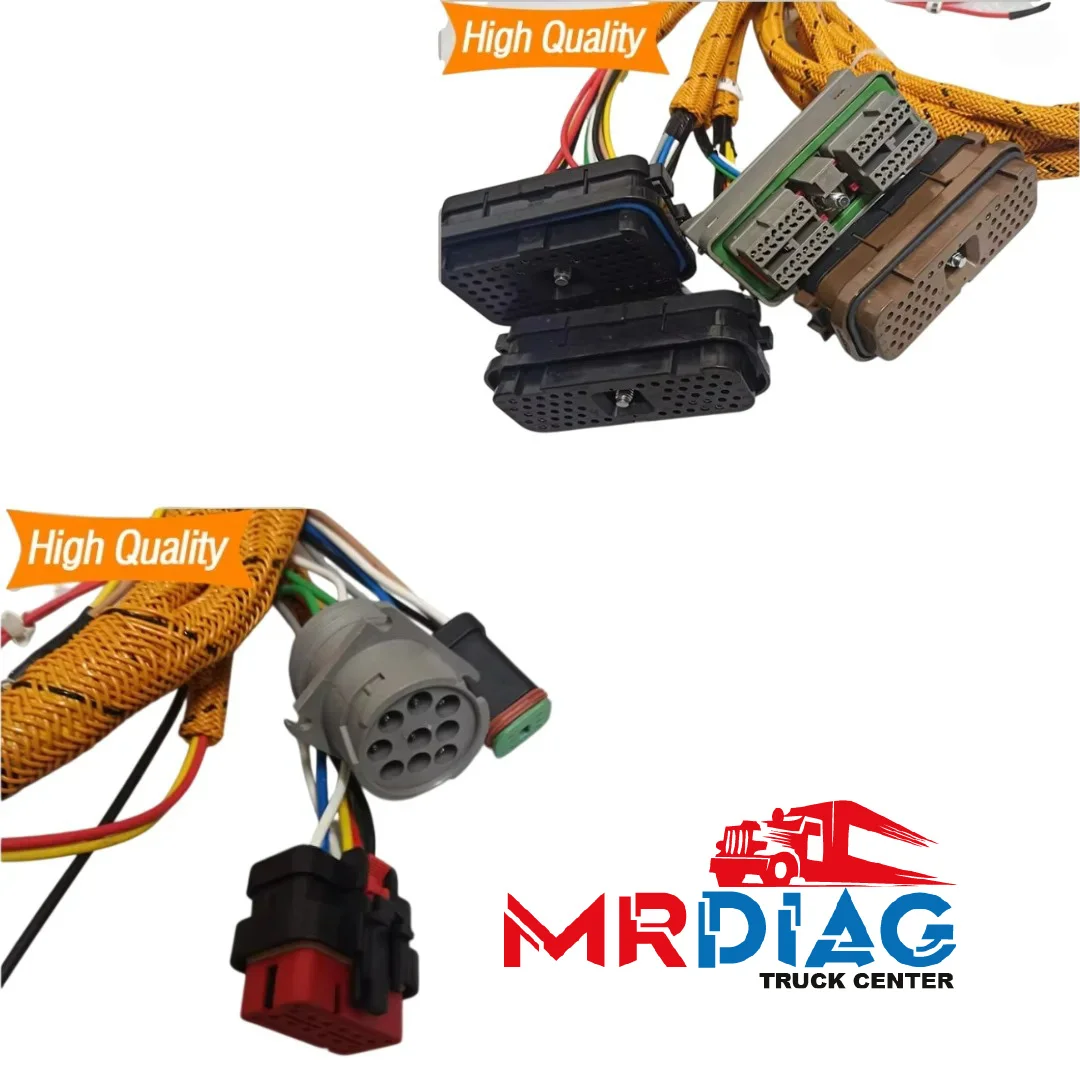

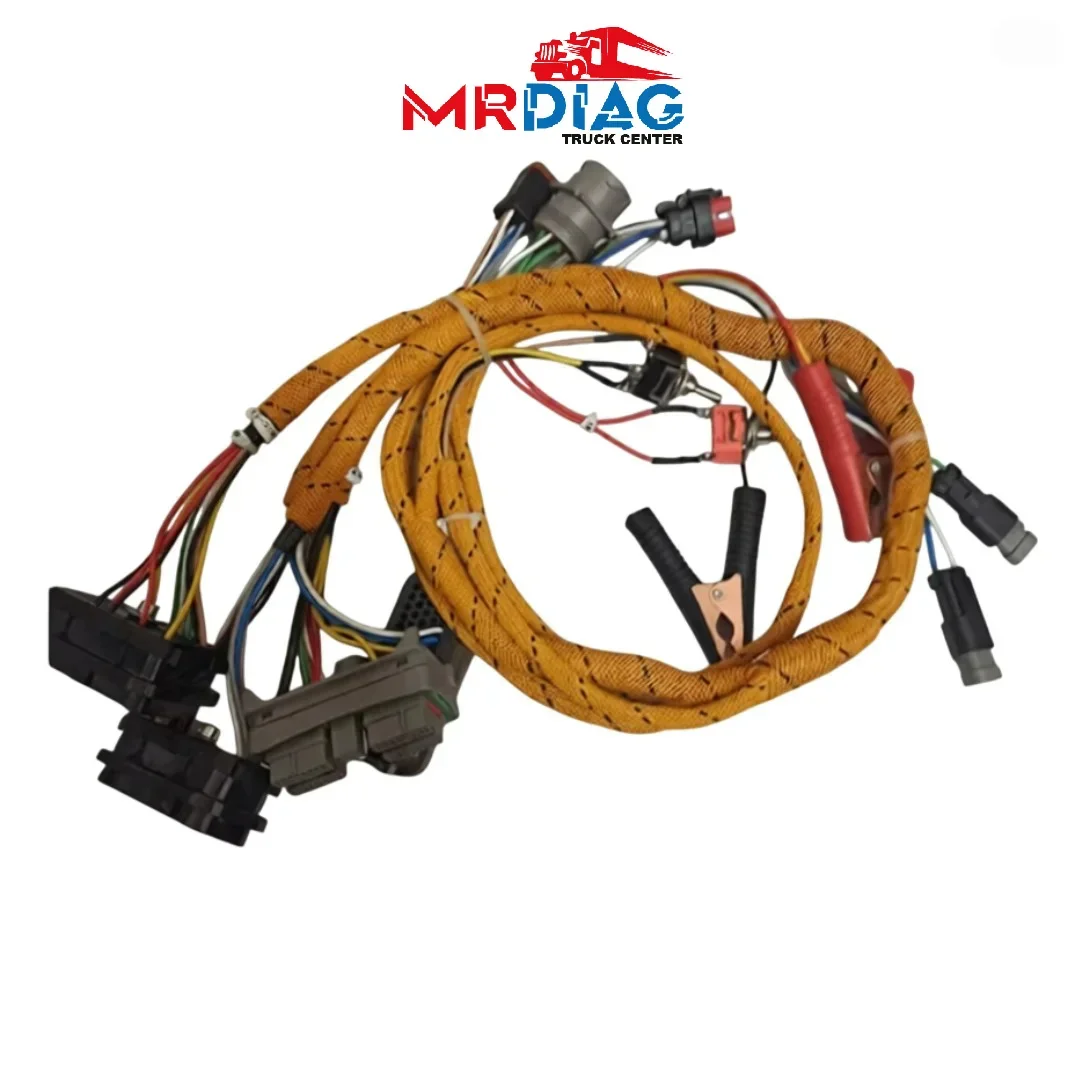

CAT Caterpillar ECM ECU Programming & Bench Test Harness – ECU Test Cable

The CAT Caterpillar ECM ECU Programming & Bench Test Harness is a professional diagnostic and programming cable designed for technicians working with Caterpillar electronic control modules (ECM/ECU).

This CAT ECM ECU Test Cable provides a practical connection between the Caterpillar ECM and compatible diagnostic, programming, or testing equipment. It is particularly useful for ECM bench testing, ECU programming, module diagnostics, configuration, and troubleshooting outside the vehicle.

Designed for professional workshops, diesel technicians, electronic specialists, and heavy equipment repair centers, this harness helps simplify access to Caterpillar engine control modules during diagnostic and programming operations.

Key Features

• CAT Caterpillar ECM/ECU programming harness
• Designed for ECM bench testing and diagnostics
• Suitable for professional ECU programming and testing operations
• Provides convenient access to the ECM outside the vehicle
• Useful for ECM troubleshooting and electronic module testing
• Helps technicians perform controlled bench diagnostic procedures
• Professional harness for Caterpillar heavy equipment and diesel applications
• Suitable for workshops, diagnostic centers, and ECU specialists
• Compact and practical design for workshop use
• Ideal for use with compatible Caterpillar diagnostic and programming equipment

Applications

The CAT Caterpillar ECM ECU Programming & Bench Test Harness can be used for professional applications such as:

• Caterpillar ECM bench testing
• Caterpillar ECU diagnostics
• ECM programming and configuration
• ECU troubleshooting
• Engine control module testing
• ECM communication testing
• ECU repair and electronic inspection
• Off-vehicle ECM diagnostic procedures
• Heavy equipment electronic diagnostics

Who Is This Cable For?

This CAT ECM test harness is intended for:

• Heavy equipment diagnostic technicians
• Diesel mechanics
• ECU/ECM specialists
• Caterpillar repair workshops
• Heavy machinery service centers
• Electronic repair technicians
• Professional diagnostic centers

Important Compatibility Note

Compatibility can vary depending on the Caterpillar ECM/ECU model, connector configuration, and diagnostic/programming equipment being used.

Please verify the ECM part number, connector type, and required application before ordering. Contact MRDIAG TRUCK CENTER if you need assistance confirming compatibility.

Why Choose MRDIAG TRUCK CENTER?

MRDIAG TRUCK CENTER provides professional diagnostic tools, ECU/ECM programming cables, test harnesses, and solutions for heavy trucks and machinery.

Our products are designed to support technicians and workshops performing professional diagnostic, programming, and electronic repair operations.

Worldwide shipping available.

Product Specifications

Product Type: ECM / ECU Programming & Bench Test Harness
Brand/Application: CAT Caterpillar
Function: ECM/ECU Testing, Diagnostics & Programming
Application: Caterpillar Heavy Equipment / Diesel Systems
Use: Professional Workshop & Bench Testing
Connection: ECM/ECU Test Connection
Recommended Users: Technicians, Diagnostic Centers, ECU Specialists & Workshops

Package Includes

• 1 × CAT Caterpillar ECM ECU Programming & Bench Test Harness
